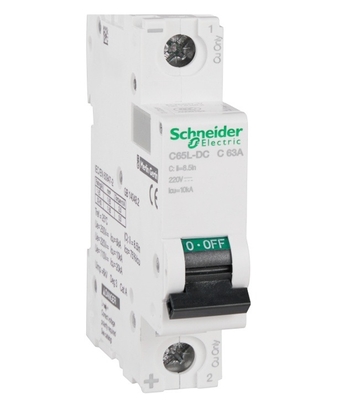

Name: DC circuit breaker for schenider photovoltaic DC circuit breaker C65N-DC series 1P mini circuit breaker for photovoltaic
Brand: DC circuit breaker for schenider photovoltaic DC circuit breaker C65N-DC series 1P mini circuit breaker for photovoltaic
SKU: C65N-DC
Rating: 4.7 (129 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: C65N-DC

Rated Voltage: 60 V DC

BCD Curve: C

Quality: 100% Strictly Tested

Pakage: carton case

Standard: IEC60947-2

Application field: dc circuit breaker for photovoltaic

warranty period: 1 Year

advantage: fast delivery

Certification: ccc ce

Product name: DC mini circuit breaker

Brand: schenider dc circuit breaker

Keywords: dc circuit breaker switches

Type: Mini

Poles Number: 1

Informations de base

Certification: ccc ce

Model Number: C65N-DC

Conditions de paiement et expédition

Packaging Details: carton case

Supply Ability: 10 Box/Boxes per Month

Description de produit

Product Description

Professional prefabricated accessories

No electrical secondary installation is required

Beautiful and safe, prevent arc overflow

Ensure operation safety

Clear indication of contact position

Avoid contact stickiness

Increase the connection contact area

Virtual connection prevention, protection level IP20B

Specification

item	value
Place of Origin	China
	schneider
	C65N-DC
Type	MINI
Poles Number	1
Rated Voltage	60 V DC
BCD Curve	C
Quality	100% Strictly Tested
Pakage	carton case
Standard	IEC60947-2
Application field	dc circuit breaker for photovoltaic
warranty period	1 Year
advantage	fast delivery
Certification	ccc ce
Product name	DC mini circuit breaker
Brand	schenider dc circuit breaker
Keywords	dc circuit breaker switches

Common Faults

Fault phenomenon	Cause analysis		Elimination method
No switch	Whether there is a short circuit at the load terminal		Troubleshooting
		Operating mechanism is faulty		Replace the product
		The rated current of the circuit breaker does not match the load current		Replace product specifications
Temperature on the high side	The wiring screw is not pressed tightly and the wire is loose		Tighten the screw
		The cross-sectional area of the selected wire is too small		Replacement wire specifications
Not open in short circuit	The selected circuit breaker does not match the working conditions of the load		Replace product specifications
No electricity	Wire stripping head too short		The wire stripping
		The wiring screw is not pressed tightly and the wire is loose		Tighten wiring screws

Packing & Delivery

carton case

Company Profile

Luoyang Bozhi Automatic Control Technology Co., Ltd. is located in Luoyang, the ancient capital of China. Its main business includes the development, processing and sales of robots, factory automatic control and automation system integration. It has the honor of National High-tech enterprise, abiding by contract and valuing credit enterprise, etc.; It has many patents and has passed the ISO standard certification of intellectual property rights.
The company team covers electrical, automation, machinery and other majors, and has successfully designed and implemented a number of industrial automation industry cases; The company has a complete production line of electric control cabinet production,assembly and testing; able to provide customers with all-round and customized solutions and services in the field of industrial automation in a timely and efficient manner.

National High-tech enterprises

ISO intellectual property standards

FAQ

1. who are we?
We are based in Henan, China, start from 2013,sell to Domestic Market(40.00%),North America(20.00%),South Asia(20.00%),Southeast Asia(20.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Other electrical equipment,Low voltage switchgear,Electrical control Panels,control cabinet,MCCB electric distribution panel board

4. why should you buy from us not from other suppliers?
1.Eight years of professional experience in industrial automation 2.One-stop service provider-from component supply to control panel custom and assembly 3.Provide OEM/ODM services

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese

Product brand:
Schneider Electric

Breaking ability:
Ics=Icu=6kA

Product Series:
C65N-DC

Impact voltage:
6KV

Series:
1P/2P

Service temperature:
- 35 ℃ ~ + 70 ℃

Tripping type:
Magnetic trip type C

Rated current:
1-63A

Wiring capacity:
1 ~ 32A can be connected to 1 ~ 25mm² cable
40~63A can be connected to 1~35mm² cable
